# Unreal Engine 5+

{% hint style="info" %}
Despite both shader workflow names both including ‘Blender’, textures can be used in other render engines successfully.
{% endhint %}

## Using your asset in Unreal Engine 5

1. Start a new project, ensure that 'Quality Preset' is set to maximum and 'Raytracing' is enabled.
2. Once loaded in, in the content browser, select import.

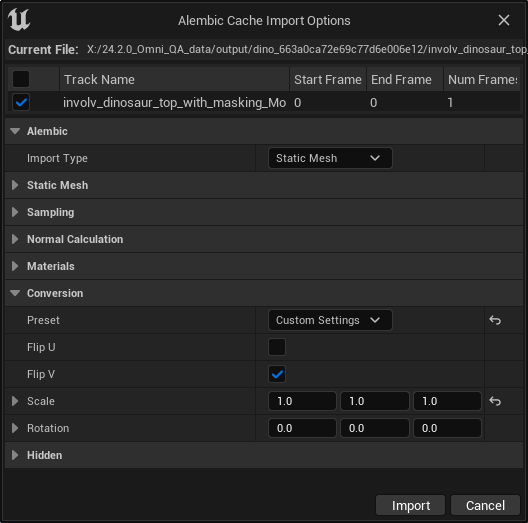

3. Navigate to your alembic file and select it in file explorer, use the settings below

<figure><img src="/files/NOVOVhTc0mKaGsvBDPI3" alt="" width="264"><figcaption></figcaption></figure>

4. Once imported, from the content drawer, drag your object into the viewport to place it.

{% hint style="info" %}

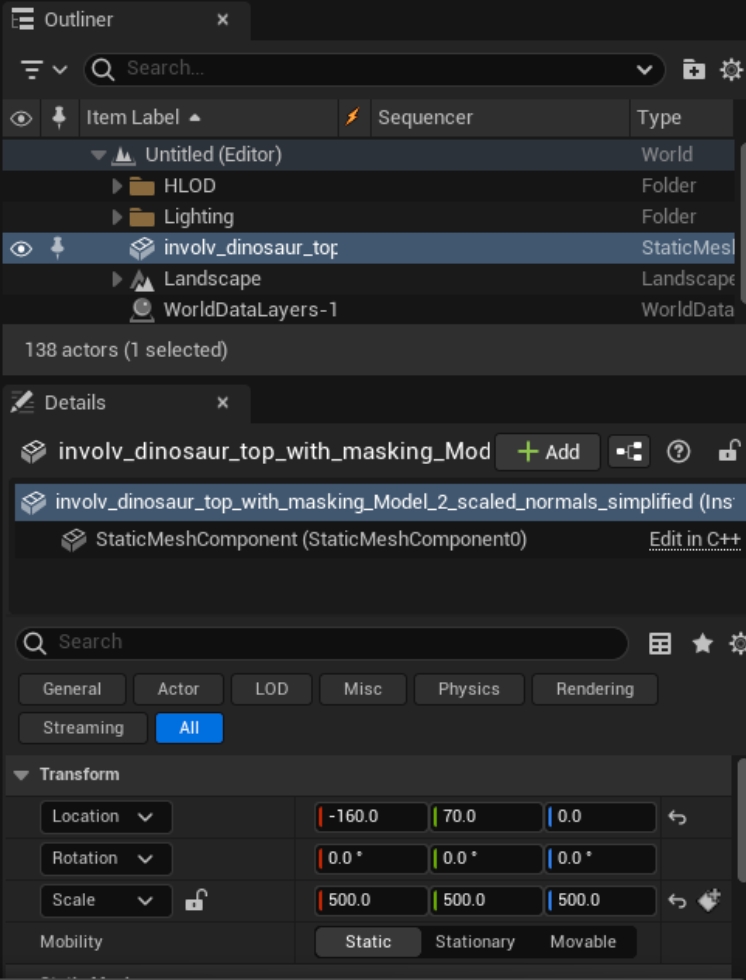

The scaling of units may be off, see the screenshot below. We have scaled up the mesh by 500.
{% endhint %}

<figure><img src="/files/KVxgDjY786rTOcelT6Pm" alt="" width="373"><figcaption></figcaption></figure>

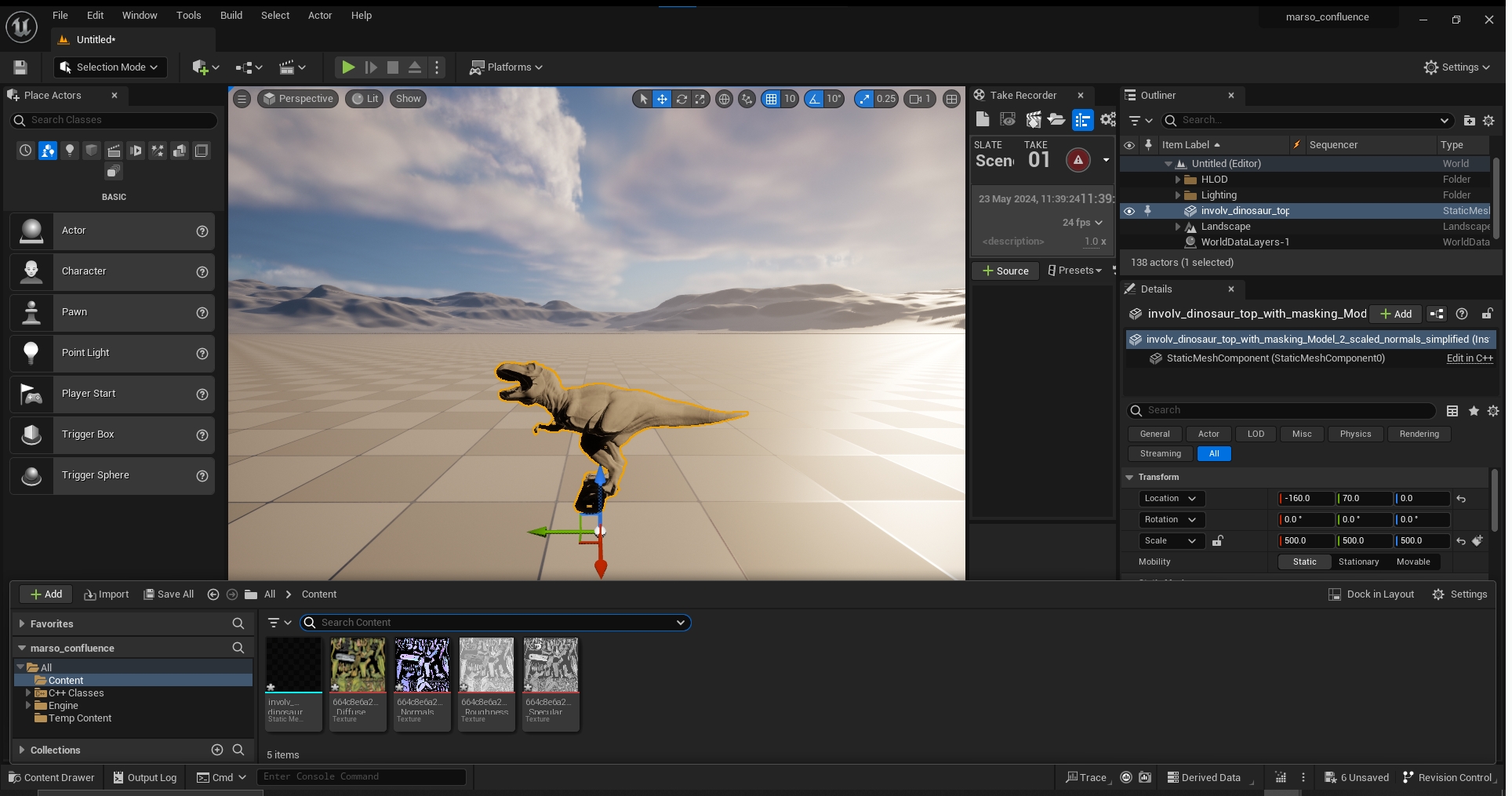

5. Then select all of the EXR files in the results from Marso and add them to your content drawer (see image below):

<figure><img src="/files/MhwqMQCGkzdgqQbRZCnZ" alt="" width="375"><figcaption></figcaption></figure>

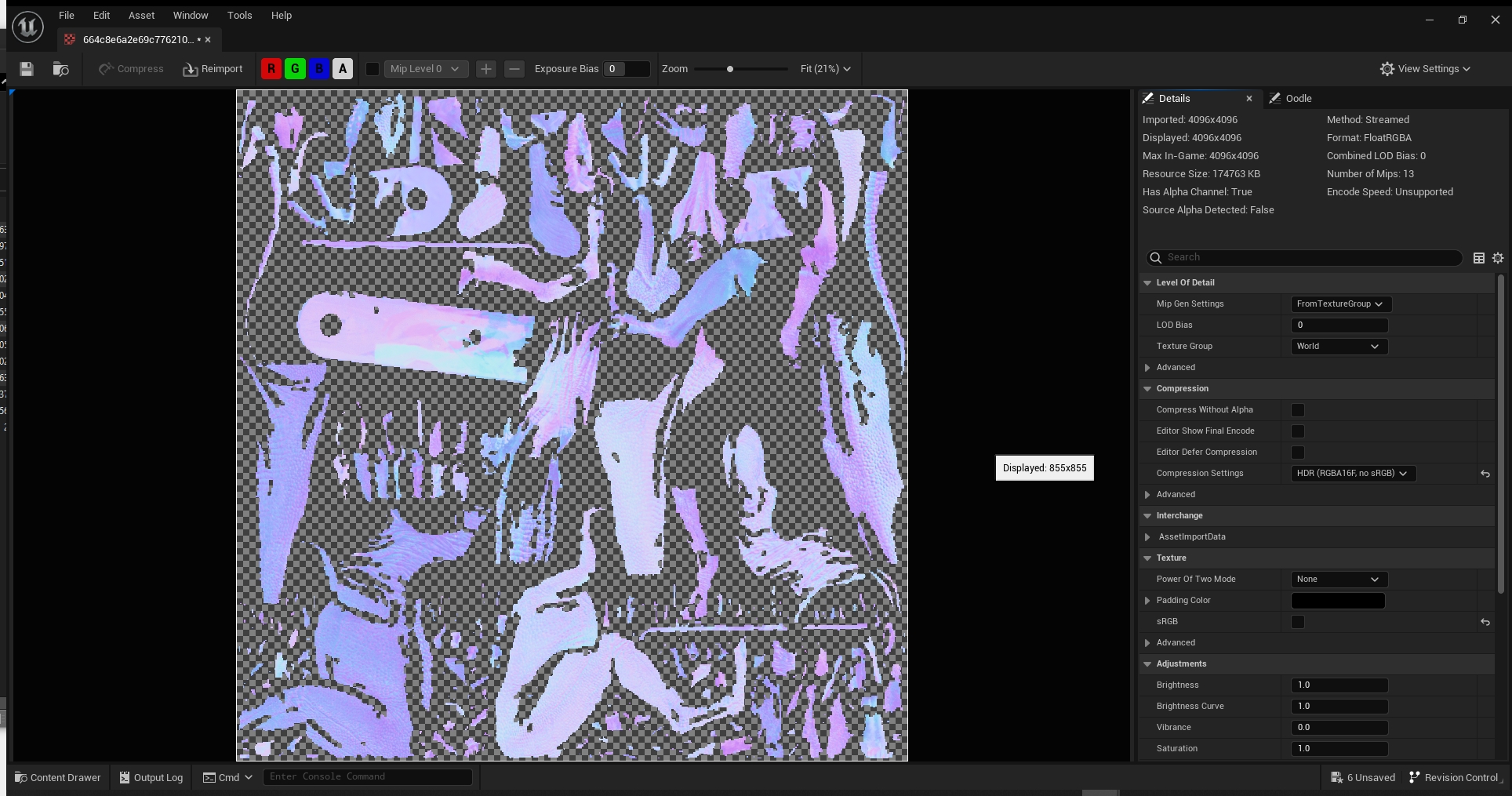

6. Double click on the normals and it will open the file inside Unreal Engine (see image below):

<figure><img src="/files/lf0dwoX5UXA8hA7QDmqF" alt="" width="375"><figcaption></figcaption></figure>

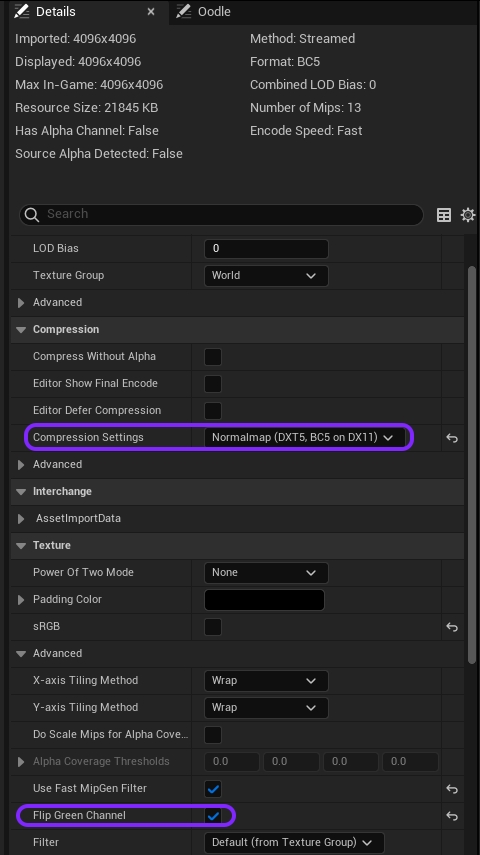

7. Then follow and set the same settings you see in the image below:&#x20;

<figure><img src="/files/YxBVBKRiQI2uU7hZ8ZSh" alt="" width="240"><figcaption></figcaption></figure>

8. Now, from the content drawer, create a new material.&#x20;

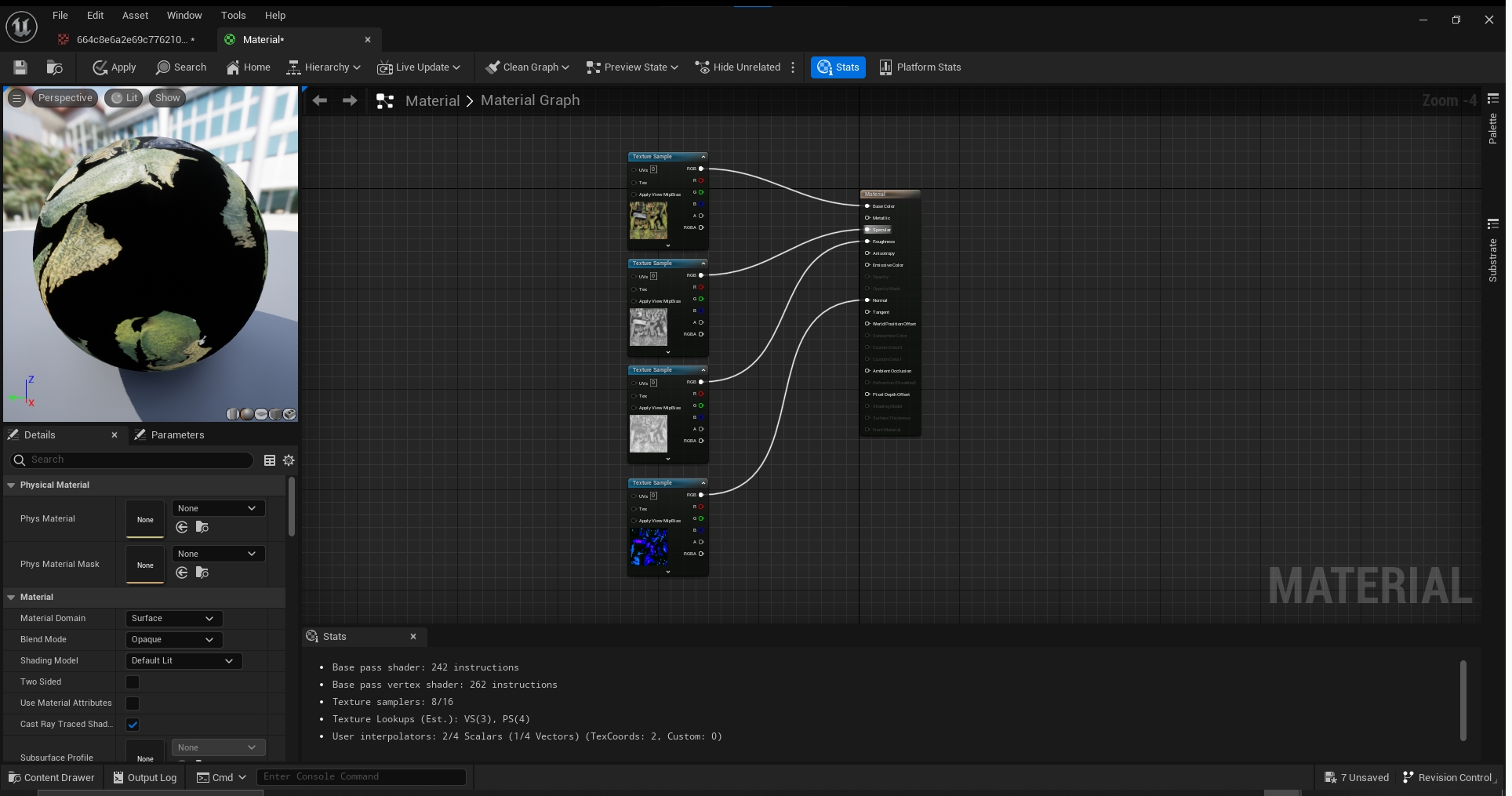

9. Double click to open the material editor. Then setup your nodegraph using the texture files from the content drawer to look like this (see below):&#x20;

<figure><img src="/files/6teO50YTEKiU9k5fccqc" alt="" width="375"><figcaption></figcaption></figure>

10. Save the material and return to the viewport.

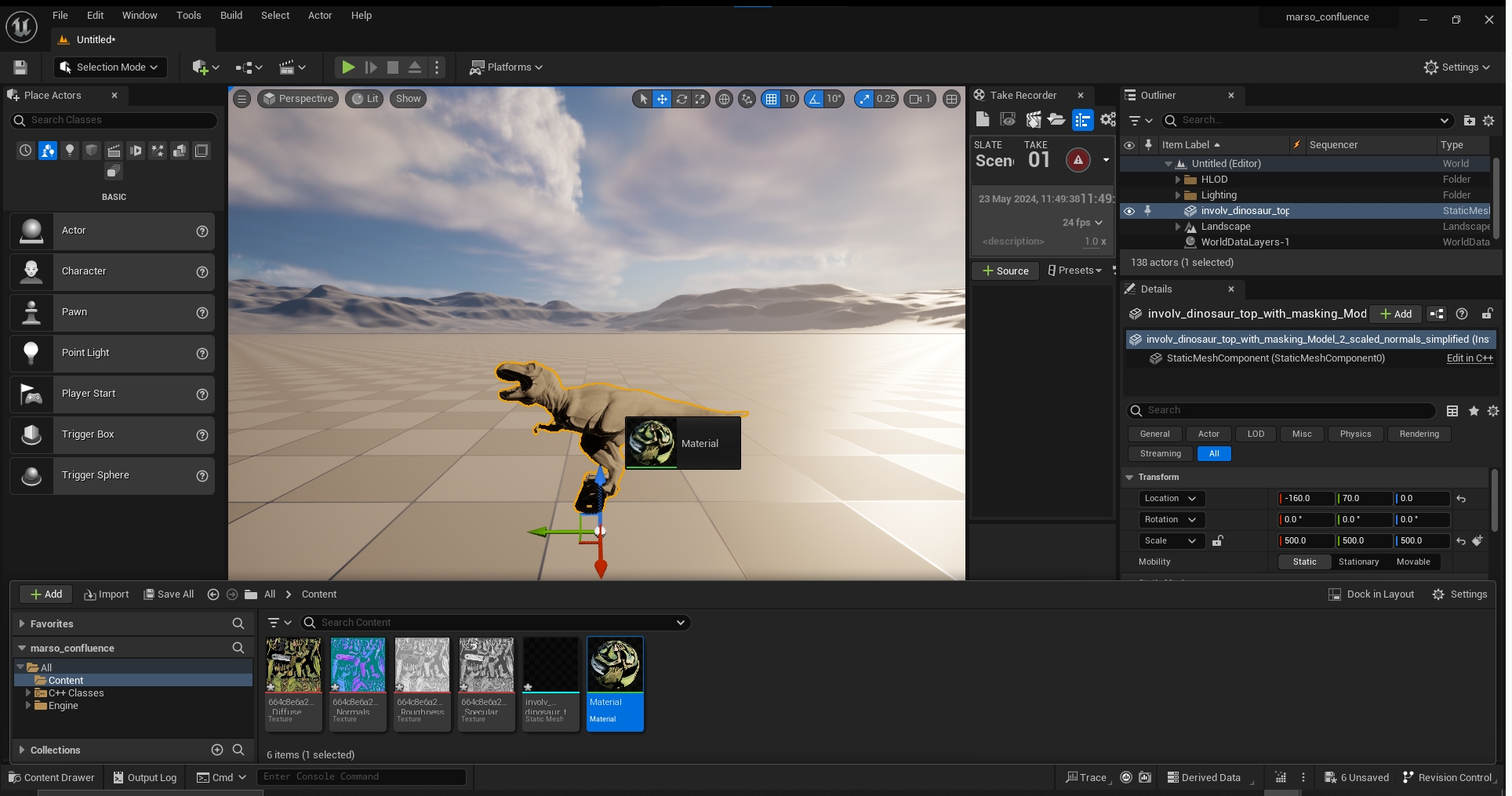

11. Drag and drop the material from the content drawer onto your mesh (see below):

<figure><img src="/files/YnLWKYatWfZAYK7GW3CH" alt="" width="375"><figcaption></figcaption></figure>

11. Your asset should now be ready for use in Unreal Engine.


---
